Parameter Specification

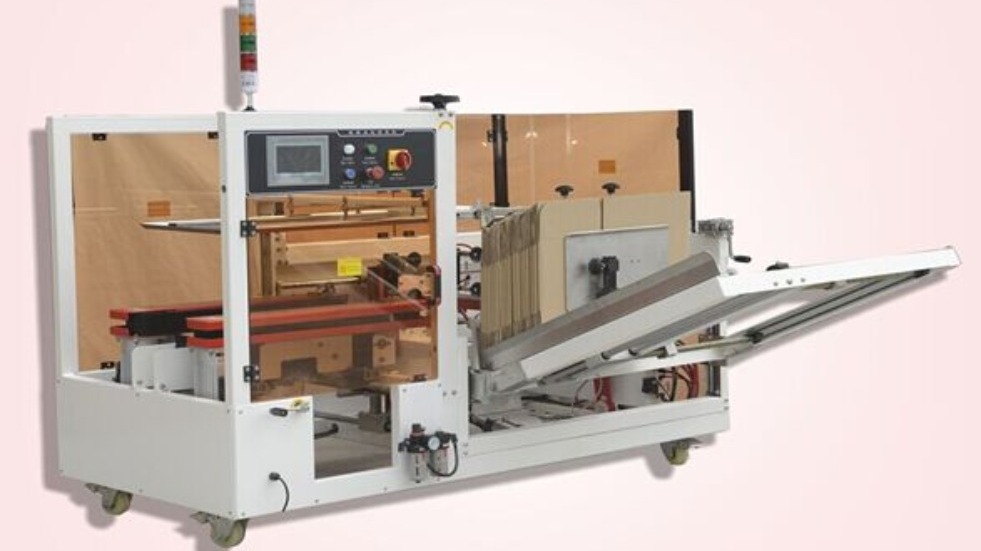

Model GPK-40E
Machine Type Automatic Carton Erector / Carton Forming & Bottom Sealing Machine
Production Speed 8–12 cartons/minute
Standard Carton Size L 250–450 × W 150–400 × H 100–400 mm
Carton Size Conditions 410 < L + W < 900 mm; 240 < W/2 + H < 620 mm
Recommended Carton Size Ratio Length, width and height ✨
🔸 Automatic carton forming & opening
🔸 8–12 cartons/min production speed 🚀
🔸 Reduces manual labour 👨🔧
🔸 Fast & uniform carton sealing 📦
🔸 Easy operation & adjustment ⚙️
🔸 Supports multiple carton sizes 📐
🔸 Improves packing efficiency 📈
🔸 Ideal for continuous production 🏭should be proportionate
Carton Quality Requirement Good-quality corrugated carton with sufficiently deep and clear indentation/creasing
Carton Design & Material As per customer's approved carton design and requirement
Carton Feed Direction Right to Left
Carton Output Carton exits with printed side facing upward
Power Supply 110/220V, 50/60Hz, 1Ø–3Ø*
Motor Power Approx. 200 W
Compressed Air Pressure 6 kg/cm²
Air Consumption 450 NL/min
Adhesive Tape Width 48 / 60 / 75 mm
Tape Head 2' / 3' tape head
Maximum Tape Overlap 2' head: up to 50 mm; 3' head: up to 65 mm
Recommended Tape Head 2' tape → 2' tape head; 3' tape → 3' tape head
Maximum Tape Roll Diameter 250 mm
Tape Core Diameter 76 mm
Working Table Height 600 ± 50 mm
Machine Dimensions Approx. L 2000 × W 1900 × H 1450 mm
Machine Weight Approx. 580 kg
Packing Type Plywood Box
Packing Dimensions Approx. L 2140 × W 1240 × H 1600 mm
Packed Weight Approx. 650 kg
Model GPK-40E
Machine Type Automatic Carton Erector / Carton Forming & Bottom Sealing Machine
Production Speed 8–12 cartons/minute
Standard Carton Size L 250–450 × W 150–400 × H 100–400 mm
Carton Size Conditions 410 < L + W < 900 mm; 240 < W/2 + H < 620 mm
Recommended Carton Size Ratio Length, width and height ✨
🔸 Automatic carton forming & opening
🔸 8–12 cartons/min production speed 🚀
🔸 Reduces manual labour 👨🔧
🔸 Fast & uniform carton sealing 📦
🔸 Easy operation & adjustment ⚙️
🔸 Supports multiple carton sizes 📐
🔸 Improves packing efficiency 📈
🔸 Ideal for continuous production 🏭should be proportionate
Carton Quality Requirement Good-quality corrugated carton with sufficiently deep and clear indentation/creasing
Carton Design & Material As per customer's approved carton design and requirement
Carton Feed Direction Right to Left
Carton Output Carton exits with printed side facing upward
Power Supply 110/220V, 50/60Hz, 1Ø–3Ø*
Motor Power Approx. 200 W
Compressed Air Pressure 6 kg/cm²
Air Consumption 450 NL/min
Adhesive Tape Width 48 / 60 / 75 mm
Tape Head 2' / 3' tape head
Maximum Tape Overlap 2' head: up to 50 mm; 3' head: up to 65 mm
Recommended Tape Head 2' tape → 2' tape head; 3' tape → 3' tape head
Maximum Tape Roll Diameter 250 mm
Tape Core Diameter 76 mm
Working Table Height 600 ± 50 mm
Machine Dimensions Approx. L 2000 × W 1900 × H 1450 mm
Machine Weight Approx. 580 kg
Packing Type Plywood Box
Packing Dimensions Approx. L 2140 × W 1240 × H 1600 mm
Packed Weight Approx. 650 kg
