Liquid & Paste Filling Machine Specifications
Specification Details

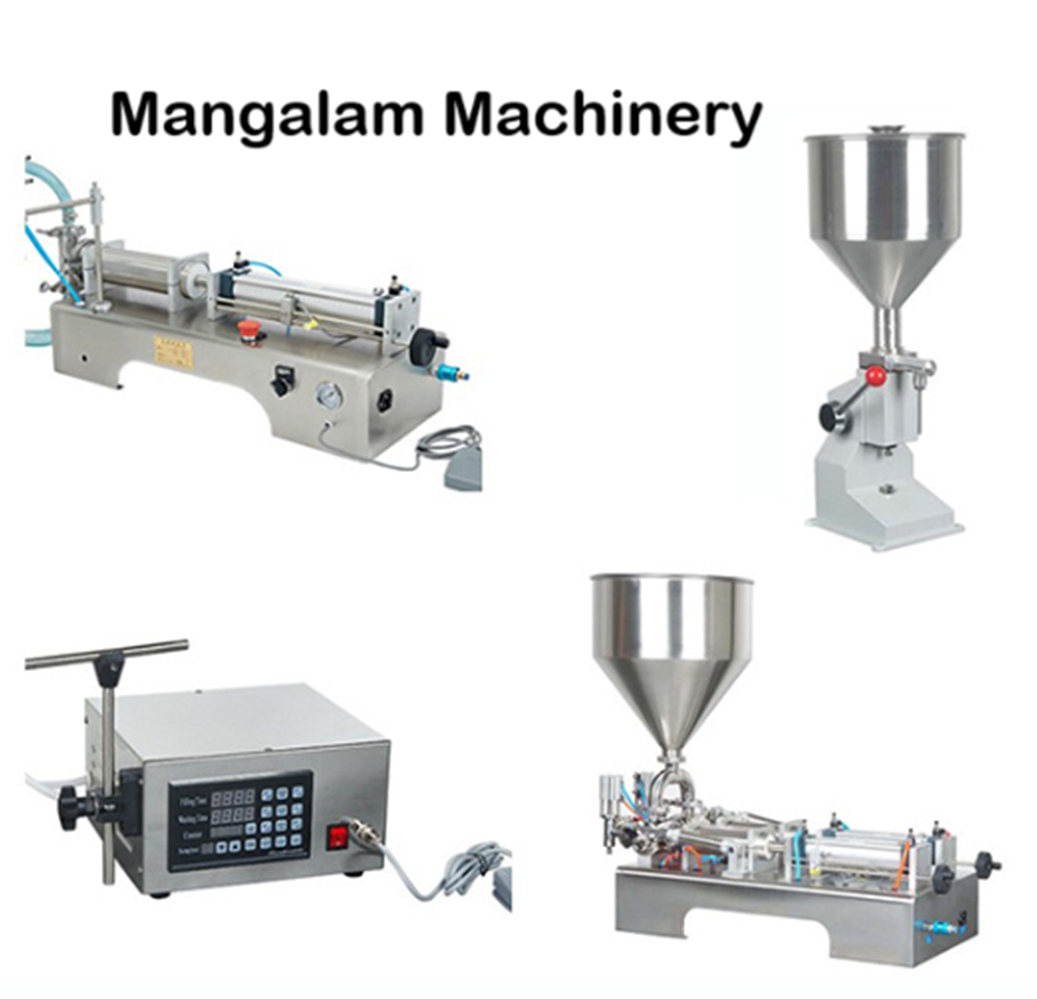

Machine Type Semi-Automatic Pneumatic Liquid & Paste Filling Machine
Filling Range 5–50 ml / 10–100 ml / 50–500 ml / 100–1000 ml / 500–5000 ml (Model Dependent)
Filling Accuracy ±1%
Filling Speed 10–30 Bottles per Minute (Depends on Product & Operator)
Nozzle Type Single / Double Anti-Drip Nozzle
Hopper Capacity 10 L / 30 L / 50 L (Optional)
Suitable Products Liquid, Paste, Cream, Gel, Honey, Sauce, Oil, Shampoo, Lotion, Syrup, Detergent, Grease, Cosmetic Products
Contact Material SS 304 / SS 316 Food Grade
Air Pressure 0.4–0.6 MPa
Air Consumption 50–80 L/min
Power Supply 220V AC / 50Hz (Control Unit)
Control System Pneumatic with Foot Pedal / Auto Mode
Filling Method Piston Filling
Machine Weight Approx. 20–45 kg (Model Dependent)
Key Features
✅ High Filling Accuracy (±1%)
✅ Pneumatic Piston Filling System
✅ Adjustable Filling Volume
✅ Anti-Drip Nozzle for Clean Filling
✅ Food-Grade SS304/SS316 Contact Parts
✅ Foot Pedal & Automatic Operation
✅ Easy to Clean & Maintain
✅ Suitable for Low to High Viscosity Products
✅ Compact Design with Stable Performance
✅ Low Air & Power Consumption
Suitable For
Honey
Edible Oil
Syrup
Sauce & Ketchup
Shampoo
Hair Oil
Lotion & Cream
Hand Wash
Liquid Soap
Detergent
Ghee
Grease
Cosmetic & Pharmaceutical Products
Chemical Liquids
Note: Filling range, hopper size, speed, and nozzle configuration may vary depending on the selected model (single head, double head, liquid, or paste version).
