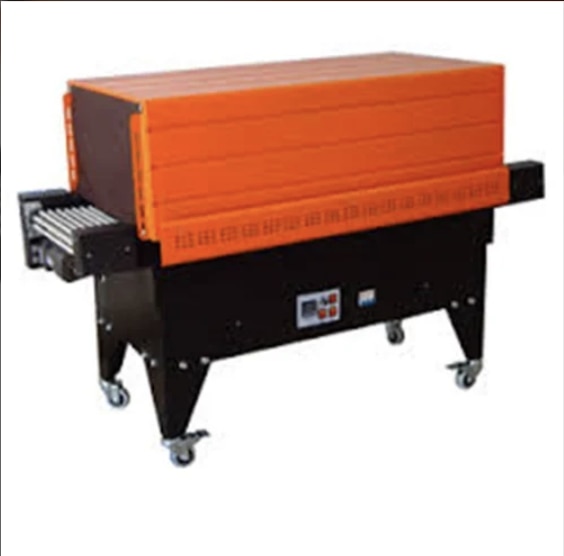

Shrink Tunnel Machine

Shrink Tunnel Machine Manufacturers

We are also supply in Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, and West Bengal

Minimum Order Quantity 1 Piece

Capacity 20 piece/min

Model Name/Number BSc4525

Usage/Application Shrink Wrapping

Voltage 50 Hz 1Phi - 220V + E

Material Mild Steel Powder Coated

Phase Three Phase

Automation Grade Semi-Automatic

Power 6.5 Kw

Chamber Size 450mm to 250mm

Conveyor Loading 5kg

MILD STEEL POWDERCOATED

DIMENTION INNER WORKING SIZE : 450 MM IN WIDTH * 250 MM IN HEIGHT FROM RUNNING CONVEYOR

CONVEYOR : ROD TYPE COVERED WITH SILICON SLEEVES

COONVEYOR LOAD PICK UP : TOTAL : UPTO 7 KG

INPUT : 220 V 3 PHASE , 5 KW

MACHINE OVERALL OUTER DIMENSION :

LONG : 1000 MM

WIDTH : 18'

HEIGHT WITH STAND : 10'

TEMPERATURE RATING : MAX 240 degree Celsius .
